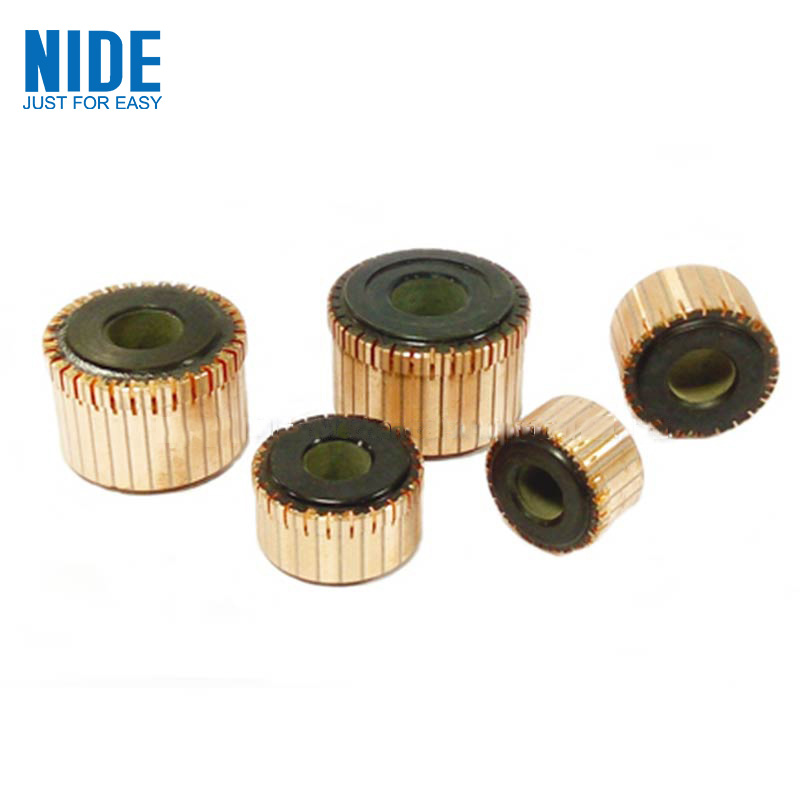

Single Motor Commutator Fir AC Motor

De Motor Kommutator ass gëeegent Single AC Motor. NIDE Kommutator deckt eng breet Palette, méi wéi 1200 verschidden Aarte vu Kommutatoren, dorënner Hakentyp, Risertyp, Shelltyp, Planarart, rangéiert vun OD 4mm bis OD 150mm. The commutators are widelyly application to automotive industry, power tools, household appliances, and other motors.You can rest assurured to buy Single Motor Commutator For AC Motor from our Factory and we will offer you the best after-sale service and timely delivery.

Schécken Ufro

Produkt beschreiwung

Single Motor Kommutator fir AC Motor

1.Product Aféierung

Den Single Motor Kommutator fir AC Motor ass fräi vu Bubble, Rëss oder Burr an der Uewerfläch.

Spannungstest: Bar zu Bar bei 500V, 1s, Bar fir Bore bei 1500V, 1 min, ouni Decompte oder Blëtz.

Spin Test: Maacht Spin Test fir de Kommutator ënner 140 Celsius, 5000 RPM, 3min. Nom Testen ass d'maximal Ofwäichung vum baussenzegen Duerchmiesser 0,015, déi vu Bar a Bar ass 0,005.

Isolatioun Resistenz: 500V, méi wéi 50MÎ©

2.Produktparameter (Spezifikatioun)

Part No.	O.D (D)	I.D (d)	Gesamt O D (D1)	Bar No (N)	Staanglängt (L1)	Gesamtlänge (L)
JZQE-RS12-148	63	13.2	73	24	16	26.5
JZQE-RS12-148B Fotoen	63	20	73	24	16	26.5
JZQE-RS12-148C Fotoen	63	13.2	73	24	16	26.5
JZQE-RS12-149	40	15	43	43	10	18.2
JZQE-RS31-150 Fotoen	44	12.08		23	10	12.5
JZQE-RS31-150B Fotoen	44	12.35		23	10	12.5
JZQE-RS31-150C Fotoen	44	12.06		23	10	12.5
JZQE-RS31-150D Fotoen	44.2	12.08		23	10	12.5
JZQE-RS31-150E Fotoen	44	12		23	10	12.5
JZQE-RS12-151 Fotoen	47.6	13.2	57	16	14	24.5
JZQE-RS12-151B Fotoen	47.6	13.2	57	16	14	22
JZQE-RS12-151C Fotoen	47.6	13	57	16	14	24.5
JZQE-RS12-151D Fotoen	47.6	13	57	16	14	22
JZQE-RS12-151E Fotoen	47.6	13.4	57	16	14	24.5
JZQE-RS31-169	38	12.08		26	10	14.3
JZQE-RS12-193 Fotoen	74	33	85	81	12	12
JZQE-RS12-247	19.5	4		7	3	5.5
JZQE-RS12-326 Fotoen	49	13.2		16	14	15
JZQE-RS32-348	58	24.1		25
JZQE-RS32-464	20.5	5	25	8	5.7	8.5
JZQE-RS32-464B Fotoen	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464C Fotoen	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464D Fotoen	20.5	5	25	8	5.7	8.5
JZQE-RS32-464E Fotoen	20.5	5	25	8	5.7	8.5
JZQE-RS12-480 Fotoen	78	23		25	13	23
JZQE-RS32-508	20.5	3.175	25	8	4.2	8.5
JZQE-RS31-525	44.2	12.08		23	10	13
JZQE-RS31-525B Fotoen	44.2	12.35		23	10	13
JZQE-RS31-525C Fotoen	44.2	12		23	10	13
JZQE-RS32-555	20.5	3	24.7	8	5.7	8.6
JZQE-RS12-593	71.5	13.2	64	24	28	32.5
JZQE-RS11-608	52.5	16		19	6.5	16
JZQE-RS11-608B Fotoen	52.5	16		19	6.5	16
JZQE-RS32-618	23	4	28.5	10	6.5	10
JZQE-RS32-618B Fotoen	22.5	4	28	10	6.5	10
JZQE-RS32-651	47.6	13	56.5	16	12.5	18.5
JZQE-RS32-664	48	13.4	57.5	16	12.5	24.5
JZQE-RS12-688	59	24.1	58	25	34.9	22
JZQE-RS12-689	59	24.1	58	25	34.9	19.5
JZQE-RS32-717	47.6	13.3	56.5	16	12	24.77
JZQE-RS32-739	44.2	13.8		23	10	13
JZQA-RS12-752	31	11.5	40	21	25.5	28
JZQB-RS31-792	61	13.5		29	9	16
JZQE-RS31-796	44.2	9		23	10	12.5
JZQE-RS12-846	48.5	10.2	48.5	25	6	11
JZQE-RS32-854	47.6	13.2	56.6	16	7	22
JZQE-RS12-907	48.5	10.2	48.5	25	6	10
JZQE-RS12-926	64	20	60	31	5	17
